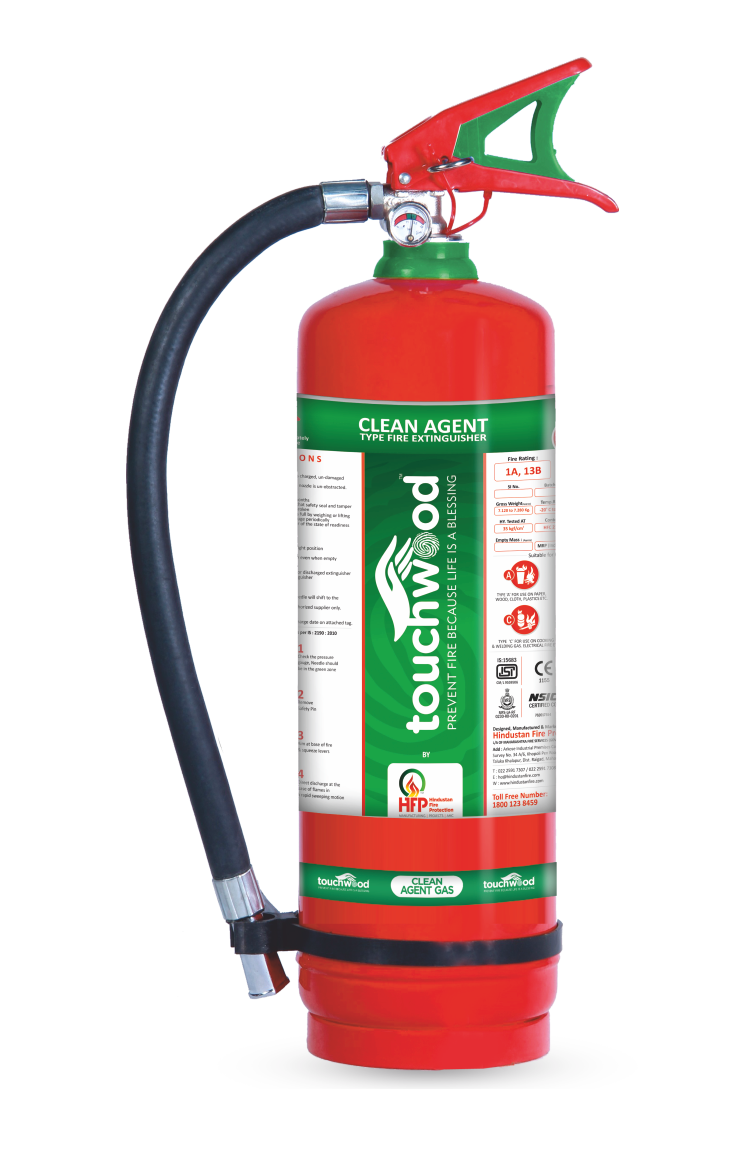

Clean Agent Abc Type Fire Extinguishers
TOUCHWOOD HFC-236fa CLEAN AGENT FIRE EXTINGUISHERS have effective extinguishing action, environmentally acceptable and excellent alternative for Halon 1211. Clean Agent HFC-236fa is a non corrosive, electrically non conductive and free of residue. It is ideally suited for protecting high value equipment.
FEATURES
- (HFC-236fa) Based Extinguishing Agent capable of fighting class A, B, C & Electrical fire.
- BIS Approved (IS 15683) & CE certified.
- High Performance Extinguishing agent environmentally safe with ZERO ODP.
- FE 36 (HFC - 236fa) is an electrically Non Conductive & low in toxicity Protect data in process, reduces equipment damage, facilitate fast return to service.
- High Quality pure polyester powder coating.
- High Quality EPDM Rubber Braided Hose is far more flexible than the normal rubber used in hose pipe and also far less prone to cracks (on Demand).
- Maximum visibility during Discharge.
- Large loop Stainless steel Pull pin.
- No Electrical Conductivity Back to the operator.
- No Thermal or Static Shock.
Ideal Use
- Home | Office | Building | Warehouse Factories
- Factories Electrical Equipment Rooms | Welding Areas | etc
Performance Data – Clean Agent Abc Type Fire Extinguishers
| MODEL | G-25A | G-26A | G-27A |
| Capacity | 2 kg | 4 kg | 6 kg |
| Design | Hose & Nozzle | Hose & Nozzle | Hose & Nozzle |
| Fire Rating | 1A : 8B | 1A : 13B | 2A : 21B |
| Height (Approx.) | 380 mm. | 490 mm. | 530 mm. |
| Diameter (Approx.) | 106±10 mm. | 140±10 mm. | 150±10 mm. |
| Average Discharge time | 12.5 Sec. | 14 Sec. | 22 Sec. |
| Average Range of throw | 3 m | 3.5 m. | 4 m. |
| Average % Discharge | 96% | 97% | 96% |
| Operating Temperature | '-20 °C to +55 °C | '-20 °C to +55 °C | '+5 °C to +55 °C |
| Service Pressure (Ps) | 9 bar | 9 bar | 9 bar |
| Max. Service Pressure (Pms) | 13 bar. | 13 bar. | 13 bar. |
| Test Pressure | 35 bar. | 35 bar. | 35 bar. |
| Expelling Agent | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) |
| Full Weight (Approx.) | 3.6 kg. | 6.7 kg. | 8.9 kg. |
| Empty Weight (Approx.) | 1.6 kg. | 2.7 kg. | 2.9 kg. |
| Shipping Weight (Approx.) | 3.8 kg. | 7 kg. | 9.2 kg. |
| Packing Standard | Inner-13.75"X4.75"X4.75" Outer (4 in 1)- 16.5"X10"X10" | 2 in 1- 21"X6.75"X14.10” | 2 in 1- 22.5"X6.75"X14.10” |
| Mounting Bracket | Vehicle/Wall bracket | Wall Barcket | Wall Barcket |
| Approvals | BIS & CE | BIS & CE | BIS & CE |
Contact Now
| Properties of HFC 236fa Clean Agent Chemical Formula : 1,1,1,3,3,3 Hexa Fluoro Propane | |
| Molecular Weight | 152 |
| Boiling point | -1.4 °C |
| Freezing Point | -103 °C |
| Maximum Fill Density | 1.20 gm/ml. |
| Specific gravity | 1.34 gm/ml. |
| Scheduled Production Phase out per Montrol Protocol | None |
| Comparisons between Clean Agents | |||
| Extinguishing Agent | HALON 1211 | HALOTRON I | TOUCHWOOD HFC 236 fa |
| Chemical Family | BCFC | HCFC | HFC 236 fa |
|
Acute Toxicity: Cardiotox LOAEL (Lowest Observable Adverse Effects Level) A higher % is less toxic. |
1% | 2% | 15% |
| Acute Toxicity: Cardiotox NOAEL (No Observable Adverse Effects Level) A higher % is less toxic. | 0.50% | 1% | 10% |
| Extinguishing Concentration, Cup Burner, n-heptane | 4-5% | 6-7% | 5.90% |
| Ozone Depletion Potential–ODP (CFC-11 = 1.0) | 4 | 0.014 | 0 |
| Global Warming Potential –GWP | N/A | Low | Moderate |
| Atmospheric Lifetime | Low | Low | Moderate |
| Model | A | B |
|---|---|---|
| G-25A | 1A | 8B |
| G-26A | 1A | 13B |
| G-27A | 2A | 21B |
