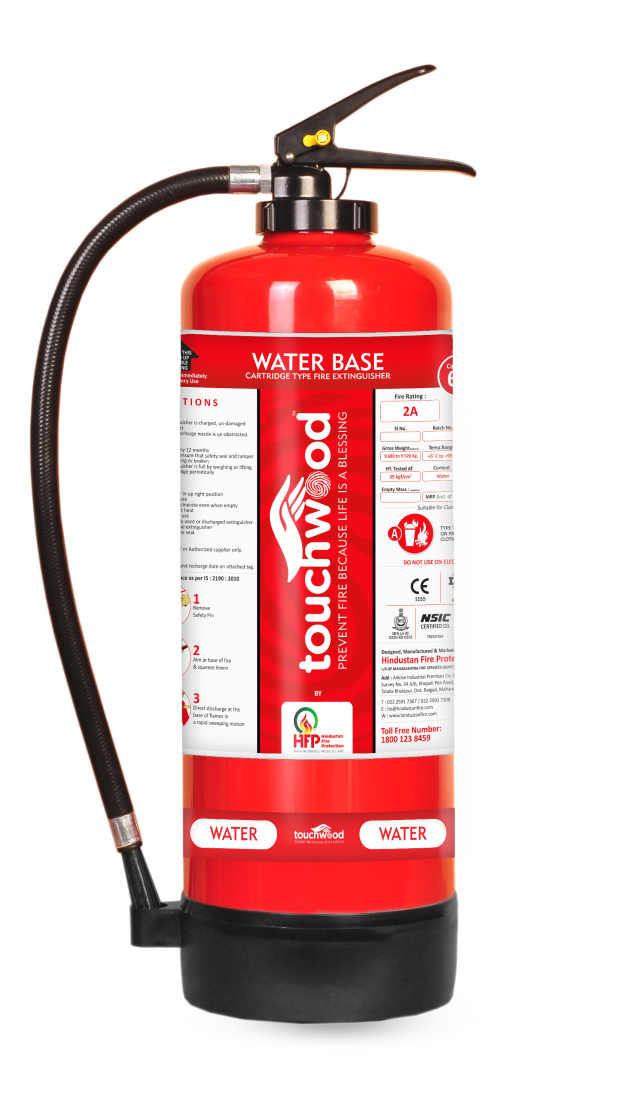

Water CO2 Type Fire Extinguisher Cartridge Type

TOUCHWOOD Cartridge operated fire extinguishers are ideal for fires involving volatile liquids and freely burning materials such as paper, cloth, wood and furniture.
Note : Water extinguishers are not suitable for fires involving electrical risk.

FEATURES

  • Water types are capable of fighting class A fire effectively.
  • BIS Approved (IS 15683).
  • CE Certified.
  • High quality pure polyester powder coating.
  • Spray nozzle to provide high fire rating.
  • Choice of capacity 6 Ltrs. & 9 Ltrs.
  • Controlled discharge.
  • Brass nickel plated head valve with simple squeeze operation.
  • Rechargeable and easy to service.
  • High quality EPDM Rubber braided hose is far more flexible than the normal rubber used in hose pipe and also far less prone to cracks (on Demand).
  • Large loop Stainless Steel pull pin.

Ideal Use

  • Restaurants Paper Factory | Garment Factory | etc.

Caution

  • Don't use on Electrical Fire.

Performance Data - Water CO2 Type Fire Extinguisher Cartridge Type

TYPE WATER
MODEL G-35A G-35
Capacity 6 Ltr. 9 Ltr.
Design Hose & Nozzle
Fire Rating 3A 4A
Height (Approx.) 530 mm. 585 mm.
Diameter (Approx.) 150±10 mm. 180±10 mm.
Average Discharge time 21 Sec. 32 Sec.
Average Range of throw 5 m. 7 m.
Average % Discharge 96% 97%
Operating Temperature +5 °C to +55 °C
Service Pressure (Ps) 14 bar.
Max. Service Pressure (Pms) 16 bar.
Test Pressure 35 bar.
Expelling Agent CO2 Gas
CO2 Gas Cartridge 60 gm.
Full Weight (Approx.) 9 kg. 13 kg.
Empty Weight (Approx.) 3.9 kg. 5.3 kg.
Shipping Weight (Approx.) 9.3 kg. 13.5 kg.
Packing Standard 2 in 1- 22.5"X6.75"X14.10" 2 in 1- 24.75"X15.3"X8"
Mounting Bracket Wall bracket
Approvals CE BIS & CE

* Indicates factory tested

Contact Now

Fire Rating as per IS 15683:2006

Type Model A B
Form G-39A
G-39
3A
4A
55B
89B
Water G-35A
G-35
3A
4A
NA
NA
